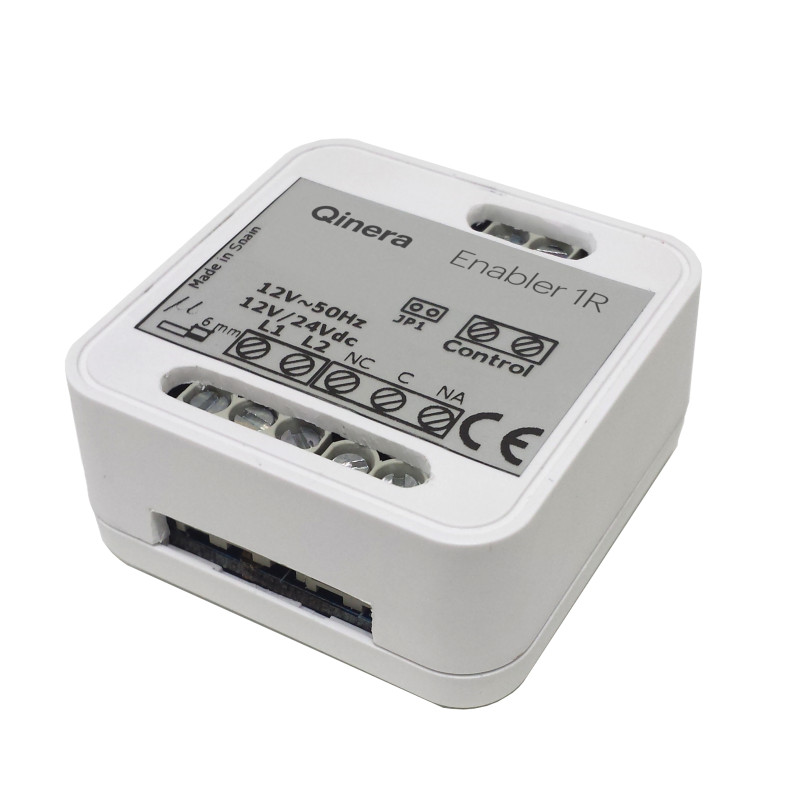

Enabler 1R-LV
BJ-232
Control lights, doors and other elements
Enabler 1R-LV is a device with a switched relay contact designed to control different elements of your environment in a simple way, like automatic doors, one-light circuits, warning signals, the doorbell, etc. The receiver is supplied at low voltage.
It can be activated with any of our controllers or with an external switch
This device is part of our environmental control solution.
Suitable for
- Physical disabilities: spinal cord injuries, multiple sclerosis, ALS, neuromuscular disorders...
- Cerebral palsy
- Brain injuries: ictus, traumatic brain injury...
- Compatible with switch.
- Radio Frequency: 433 MHz.
- Wide range of low voltage power supply: 12-24V DC / 12V AC.
- One switch input for manual control with switches.
- Power cable section: 1.5mm2.
- Maximum section of the load circuit: 2.5mm2.
- Size: 50,8 x 50,8 x 25,4 mm.
- Maximum load:
- Resistive load: 12A.
- Inductive load: 350W/3.5 A /cos= 0.4.
- Controllable with our remotes.
- Connect up to 10 different Enabler 1R on the same system.
- Two operating modes selected with a jumper: latched and pulse (1 sec).
- Normally open and normally closed contacts available.
- Configuration jumper.
- User's guide.
Enabler 1R
Joaquín Romero
Este dispositivo hace que pueda controlar varios elementos de la casa a través de mi mando Control Pro. Controlo por ejemplo la puerta de mi piso, la luz de la sala de estar, etc.
