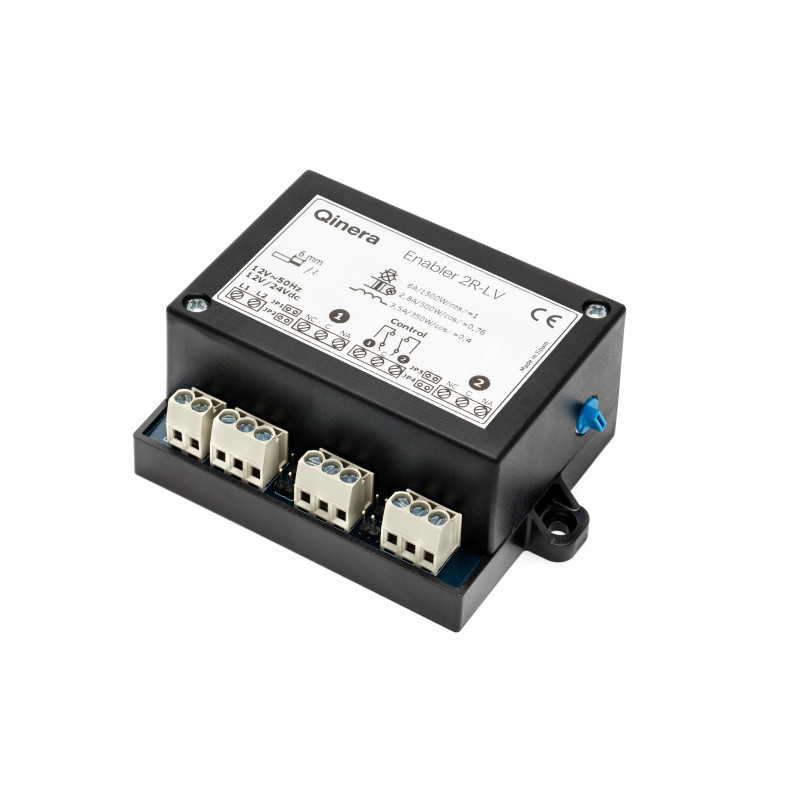

Enabler 2R-LV

BJ-236

Control up to two lights, doors or other elements

Enabler 2R-LV is a device with two switched relay contacts that allows you to control two different elements of your environment or two different functions of the same element. It's powered with low voltage and can be activated via any of our controllers or manually by means of wall switches.

Use it to control electrical appliances such as lights, doors, recessed plugs or others.

Choose from four operanting modes: latched, dead man, combined and 1-second pulse.

This device is part of our environmental control solution.

Suitable for

Physical disabilities: spinal cord injuries, multiple sclerosis, ALS, neuromuscular disorders...
Cerebral palsy
Brain injuries: ictus, traumatic brain injury...

Download PDF

Power suply: 12 to 24VDC or 12 VAC.
Controllable remotely using our remotes or manually by means of wall switches.
Size: 150 x 59 x 36 mm.
Radio Frequency: 433 MHz.
Connect up to 16 different Enabler 2R in the same system.
Four operating modes selected with the jumpers: latched, dead man, combined and 1 second pulse .
In combined mode, the operating mode depends on the length of the click:

- Short click: latched (auto-off at 55 seconds) .
- Long click: dead man.
